45# Steel Corrugator Pressure Roll

Brand Name : YH

Model Number : 2400-495

Place of Origin : Made in China

MOQ : 1 pcs

Price : 500-10000

Payment Terms : T/T

Supply Ability : 3000 pcs

Delivery Time : 30-45 days

Packaging Details : Wooden Boxes

Material : 45# steel

Coating : Hard Chrome

Coating thickness : 50-80μm

Width : 2400mm

Diameter : 495mm

Steel wall thickness : ≥50mm

Heating treatment : Intermediate frequency quenching

Hardness : >HRC55 after hardening

Certification : ISO9001

Contact Now

Hard Chrome Corrugating Pressure Roll Chinese JS DWB Type Corrugator Machine

Product name	Pressure roll
Application	Single facer, corrugator machine
Raw material	45# Steel
Heating treatment	Intermediate frequency quenching
Hardness	≥HRC 55
Harden Layer	≥7mm
Coating	Hard chrome 0.05-0.08mm
Diameter	50-500mm
The roller surface length	100-4000mm
Cylinder run-out accuracy	≤0.02mm
Cylindricity accuracy	≤0.015mm
Dynamic balancing accuracy grade G2.5	G2.5

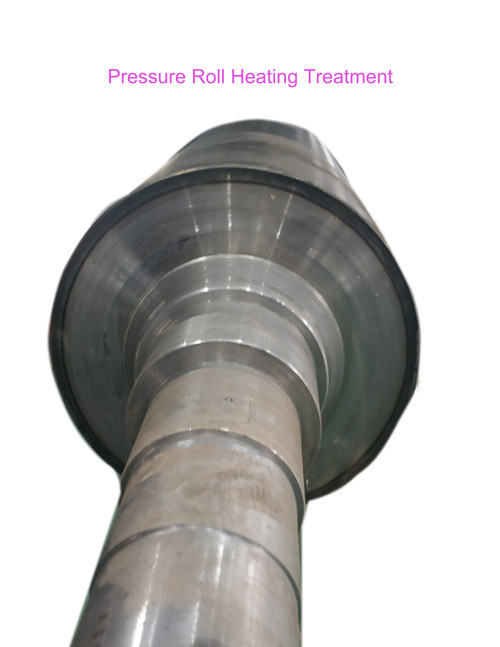

High Hardness from Vertical Quenching Process

Intermediate frequency quenching can guarantee both the hardness and harden depth we need. Our harden layer depth can reach to 8-10mm. With harder base material as foundation, the lifetime of our pressure rolls are greatly extended.

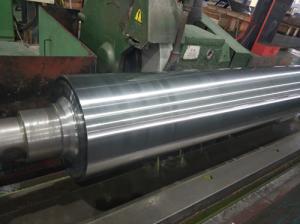

45# Steel Corrugator Pressure Roll

45# Steel Corrugator Pressure Roll

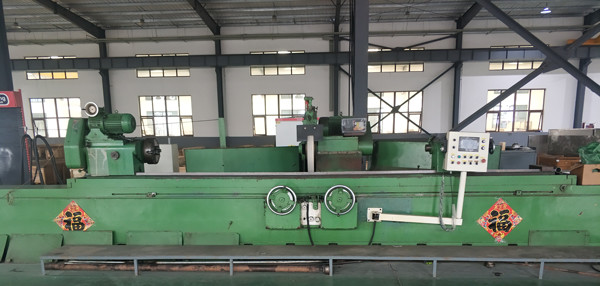

High precison grinding machine.

Package

Contact me:

Bonnie Li

Mobile&whatsapp&Wechat: +86-18661680180

E-mail: qdmjbonnie@hotmail.com, bonnenul@yahoo.com
