Forging Steel E Flute Traditional Corrugating Roll

Product Categories

Tungsten Carbide Corrugating Rolls [146]
Hard Chrome Plated Corrugated Roller [49]
Peripheral Heating Corrugating Rolls [4]
Corrugator Line [1]
Corrugated Paperboard Machine [4]

Qingdao Yonghui Packaging Machinery Co.,Ltd

Contact Now

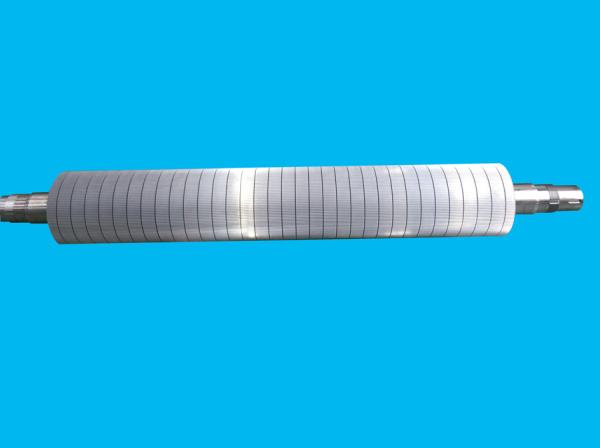

Forging Steel E Flute Traditional Corrugating Roll

Brand Name : YH

Certification : ISO9001

Place of Origin : Made in China

MOQ : 1set

Price : $5000-$15000/set

Payment Terms : T/T

Supply Ability : 1500 sets per year

Delivery Time : 60-90 days

Packaging Details : Wooden Boxes

Material : 50CrMo precision forged alloy steel

Coating : Hard Chrome 0.06-0.08mm

Size : 1900mm×340mm

Heating treatment : Intermediate frequency quenching

Hardness : >HRC58 after hardening

Flute type : E Flute

Warranty : 8 million linear meters

Refurbish : 3-4 times

Contact Now

Hard Chrome Traditional Corrugating Roll for Chinese Corrugator

Introduction

The largest professional corrugated roller manufacturer in northern of China

50CrMo refined forging steel supplied by the best manufacturer in China.

A, C, B, E, F, G, N flute corrugated rolls

High Speed can reach to 200m/min

Hard Chrome 0.06-0.08mm

Medium frequency quenching heating treatment machine makes the hardness of base steel more than HRC58 and harden layer 8-12mm.

High precision and high performance CNC grinding machine equipped with Germany Siemens control system.

We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement. The flute profile is more reasonable, suitable to customer’s machine

Our corrugated rollers has been exported to many countries such as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.

Supply corrugated rollers for all kinds of corrugator line such as Fosber, BHS, BW Paper System, K&H, HSIEH HSU,Fuli, Wanlian, TCY, Champion, West River, Mingwei and so on.

Forging Steel E Flute Traditional Corrugating Roll

2.Precision Index of Corrugating Rolls

Item	Index
Gear teeth height limits of deviation	≤ 0.01mm
Addendum circle run out tolerance	≤ 0.02mm
Gear teeth width limits of deviations	≤ 0.015mm
Tooth profile limits of deviations	≤ 0.01mm
Gear lateral face counter shaft parallelism	≤ 0.01mm
Tip cylinder element linear	≤ 0.01mm
Gear teeth division limits of deviations	±10"
Smooth finish	Ra<0.6µm

Forging Steel E Flute Traditional Corrugating Roll

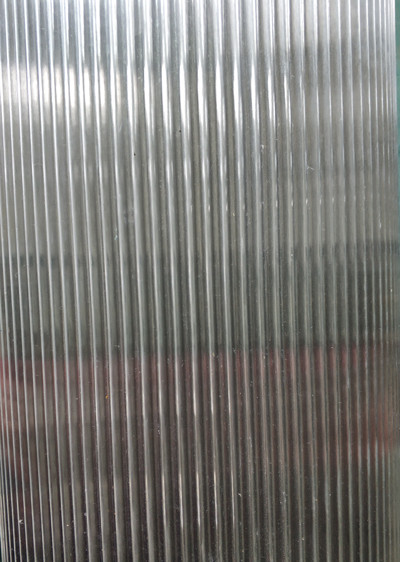

Flute Profile

Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.

Flute	Profile	Height(mm)	Pitch(mm)	Flutes/300mm	T.U.R
A	UV	4.5-5.0	8.0-9.5	34±3	1.45-1.52
C	UV	3.5-4.0	6.8-7.9	41±3	1.37-1.47
B	UV	2.5-3.0	5.5-6.5	50±4	1.33-1.41
E	UV	1.1-2.0	3.0-3.5	93±6	1.24-1.36
F	UV	0.8-1.0	2.2-3.2	115±20	1.19-1.25
G	UV	0.6-0.8	1.8-2.8	136±20	1.15-1.20
N	UV	0.4-0.6	1.2-2.2	193±55	1.10-1.15
Others	UV	Customized	Design	Design	Design
